원래 장소:
Dongguan, 중국
브랜드 이름:
Fangsheng
인증:
ISO9001:2015,IATF16949,RoHS,Reach,etc
모델 번호:
fs-htn
| Attribute | Value |
|---|---|

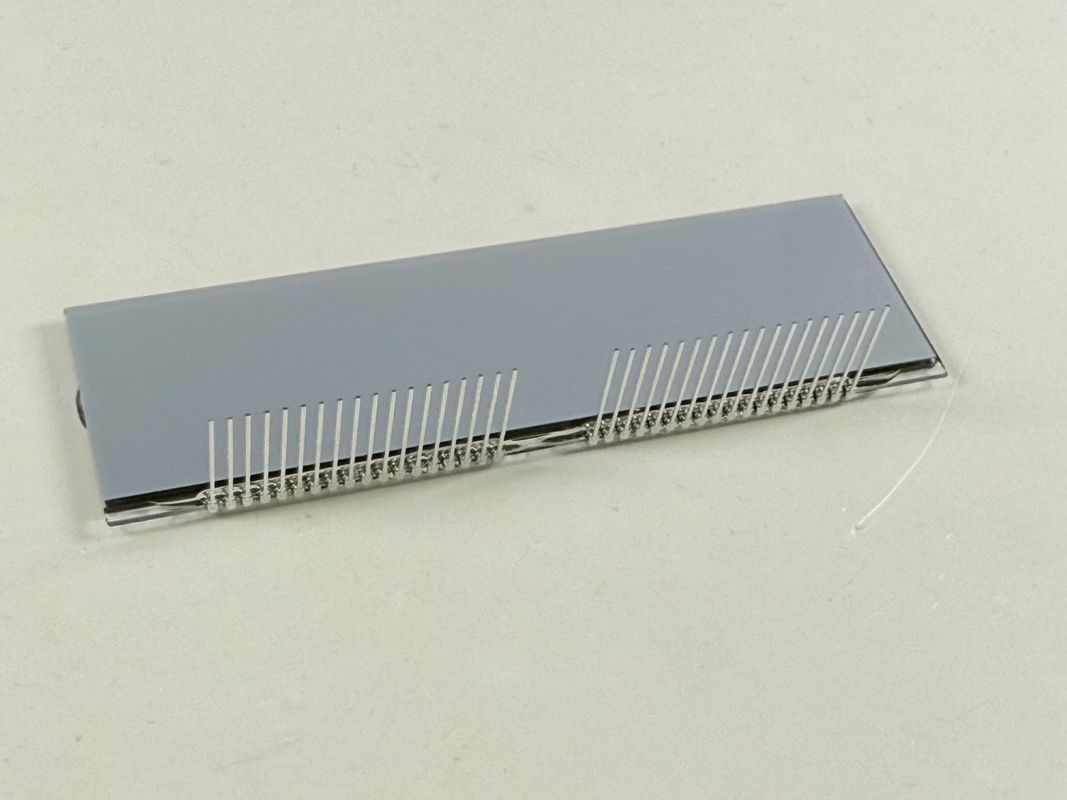

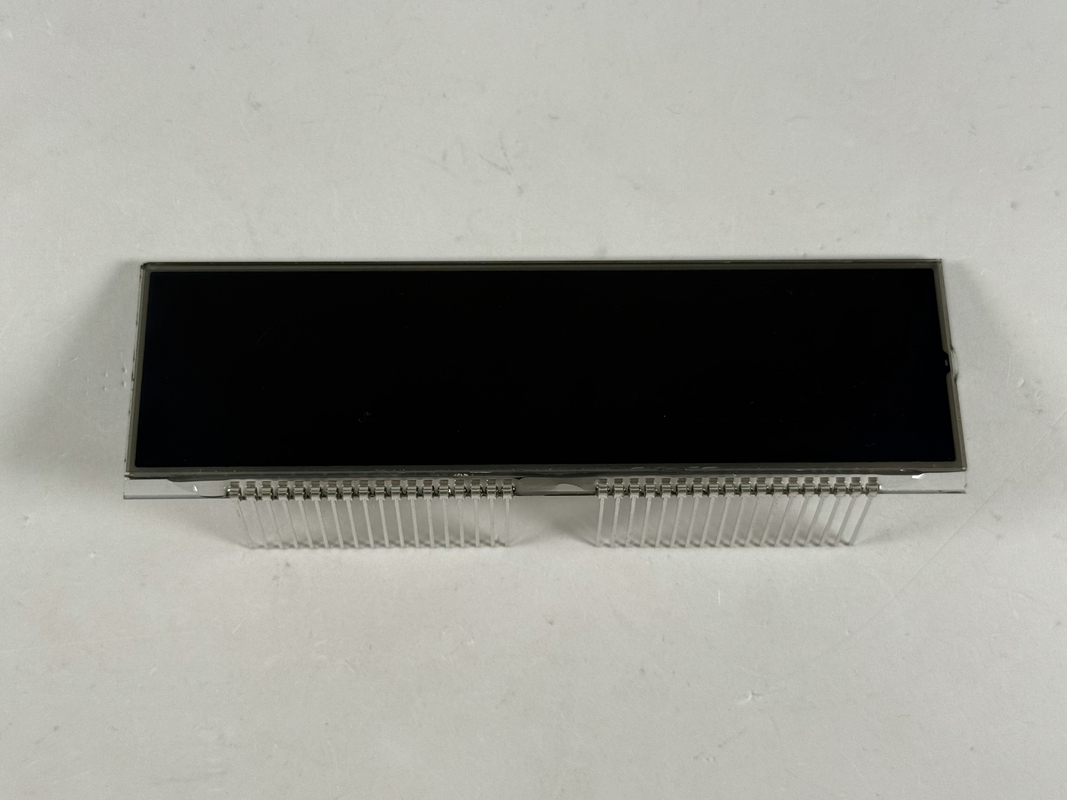

| Product name | Custom Segment LCD Display for Motorcycle Instrument Display OEM ODM TN HTN STN FSTN |
| Display Type | HTN, negative mode |
| Connector Type | PIN (Customized) |
| Interface type | Parallel Interface, SPI, RS232, MCU, etc |
| Viewing Direction | 6 o'clock (Customized) |
| Operating Voltage | 5V (Customized) |
| Parameter | Value | Description |
|---|---|---|
| LCD Type | HTN, Negative | High Transmissive Nematic with dark segments on bright background |
| Drive Configuration | 1/4 Duty, 1/3 Bias | Specifies duty cycle and bias ratio for driving LCD |
| Viewing Direction | 6 O'Clock | Ideal angle to read display clearly |
| Operating Range | -30°C to +80°C | Temperature range during normal operation |
| Storage Range | -40°C to +85°C | Temperature limits for storage |
| Supply Voltage | 5.0 V | Nominal operating voltage |
| Refresh Frequency | 64 Hz | Frame update rate for stable display |
| Front Polarizer | Transmissive with Adhesive | Type and mounting method of front polarizer |
| Back Polarizer | Transflective with Adhesive | Type and mounting method of back polarizer |
| Connector | PIN | Electrical connection interface |
문의사항을 직접 저희에게 보내세요
