원래 장소:
동완, 중국
브랜드 이름:
Fangsheng
인증:
ISO9001:2015,IATF16949,RoHS,Reach,etc
모델 번호:
fs-tft
| Attribute | Value |
|---|---|

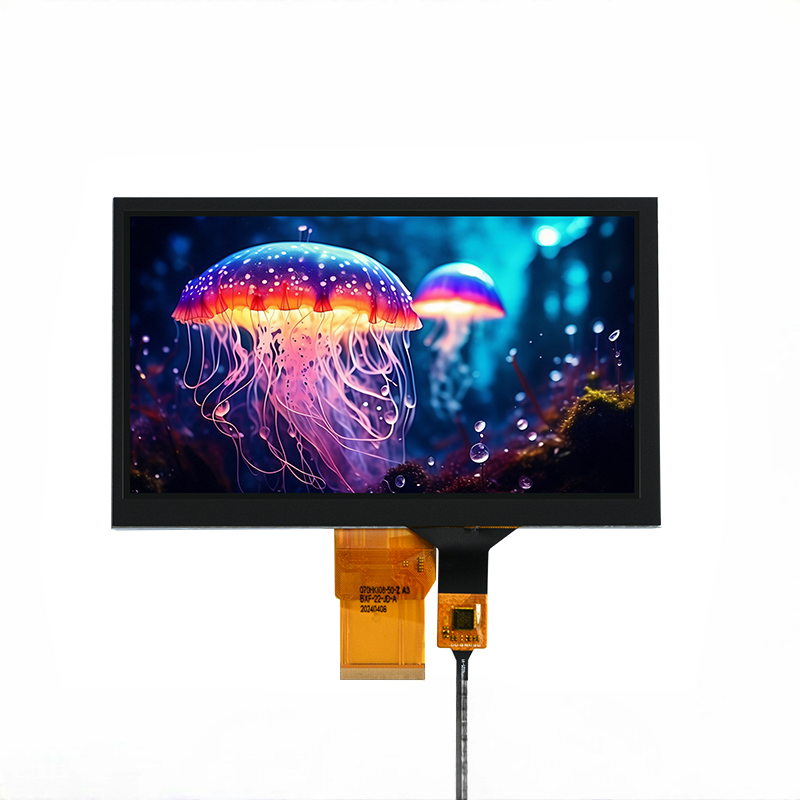

| Product Name | OEM ODM Industrial Grade 7 Inch TFT Touch Durable 7 Inch TFT LCD 800x480 with RGB Interface |
| Size | 0.96-10.1 inch (Custom) |
| Interface | SPI/RGB/MIPI/LVDS, etc. |
| Features | Wide temperature range, high brightness, anti-interference, shock resistance, durable |
| Custom | PFC, CTP, Cover glass, etc. |
| Application | Factory automation control panels, CNC machine displays, etc. |
| Resolution | 800x480 (Custom) |
| Parameter | Specification |
|---|---|
| Resolution | 800 × 480 pixels |
| Interface | RGB |
| Driver IC | EK9713 / EK7330 |
| Viewing Angle | 12 o'clock (V.A 12H) |
| Touch Support | No Touch Panel (No TP) |
| Operating Temp. | -20°C to +70°C |
| Brightness | 1300 nits (High Brightness) |
| Dimensions | 165.0 × 100.0 × 5.8 mm |
| Active Area | 154.08 × 85.92 mm |
| Key Feature | High-brightness TFT LCD |
문의사항을 직접 저희에게 보내세요
